3-Port Units | 3cm Countertop
Reduce fabrication time and cost for any 3-Port S-Box™ models in 3cm countertops with our 3cm Installation Plate and Spacer kit. This creates the ledge needed to install the S-Box™ in a few easy steps.
Click here for the Instruction Guide!
Simply cut a 12-1/4" x 5-1/8" rectangle in the countertop, then bond this plate to the underside to create the ledge the unit hangs from. Attach the spacers to the S-Box™ to raise it to the correct depth. Unit drops in securely with no adhesive needed between plate and S-Box™. Then attach your 1/2" Custom Top to conceal the unit.

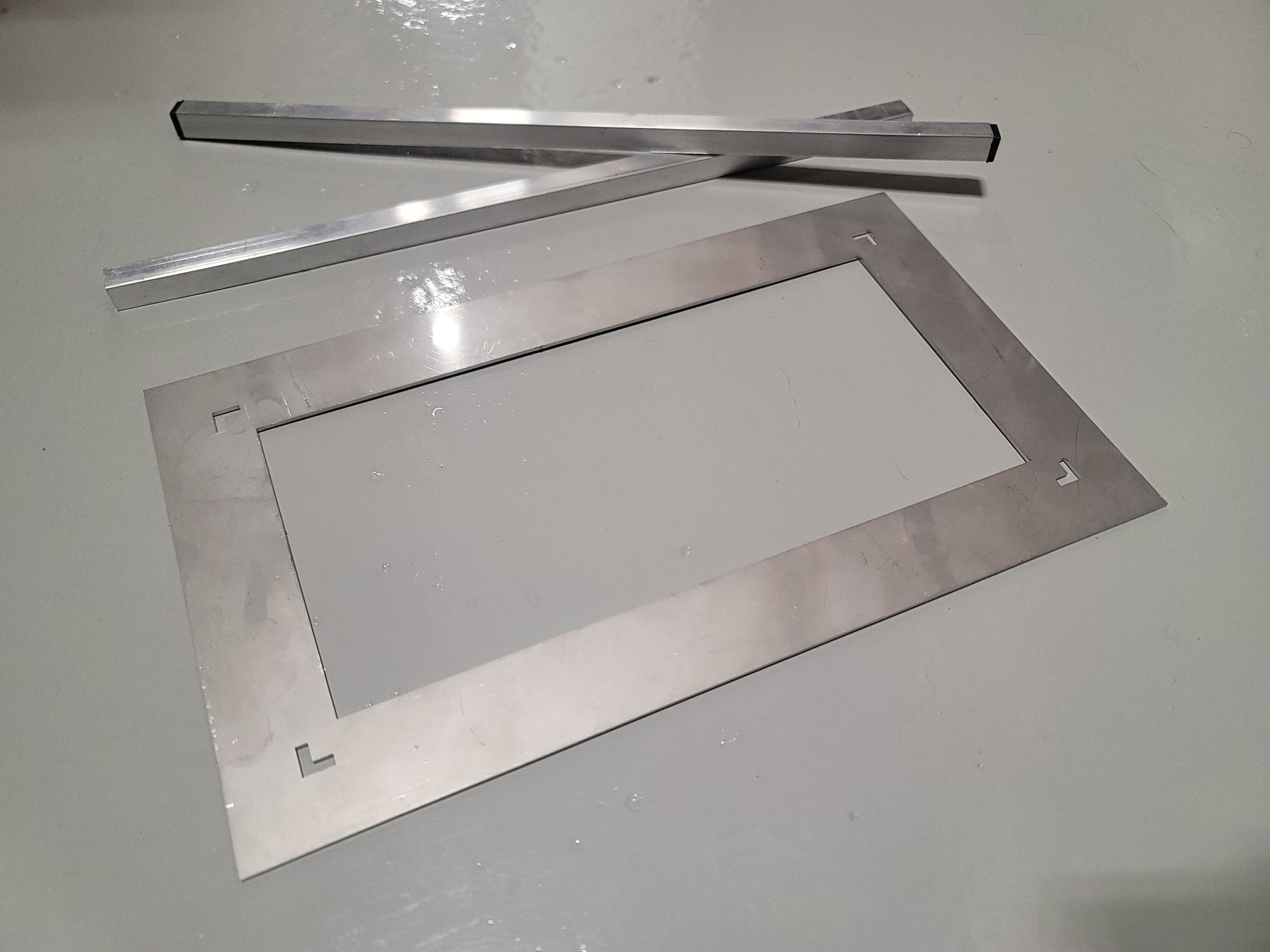

Stainless Steel 304 Install Plate – 0.060" thick – With 10mm Spacers for 3-Port S-Box™ Pop-Up Outlet
